This guide will tell you everything you need to know about your router and how to configure it.

In this article

About your router

Find out everything you need to know about your router here.

Hitron Chita

Before you begin, please check your Hitron box came with the following equipment:

  • 12v 3.5 Amp (42W) power adapter for UK mains
  • RJ45 Ethernet cable (1.8 metres long)

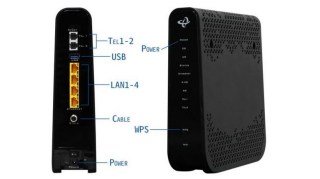

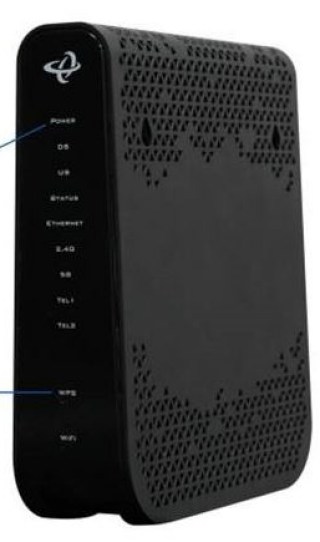

About your Hitron Chita router



IT Equipment

Cable modem to connect your devices to the Internet.

Wireless

WLAN supporting dual concurrent band wireless ‘n’ at 2.4GHz and 5GHz and wireless ‘ac’ at 5GHz.Both bands use IEEE 802.11n/ac WiFi access and are backward compatible with A/B/G devices.

If you’ve chosen to take advantage of one of our multi-static IP address options (e.g. 5 or 13 static IP addresses), in addition to the VMB supplied Hitron router, you will require a customer provided router to enable WiFi capability.

Wired Devices

Gigabit LAN switch with 4 Gigabit Ethernet and 2 RJ11 phone line ports

Security

Configurable software firewall for setting filters and controls.

About your hitron router

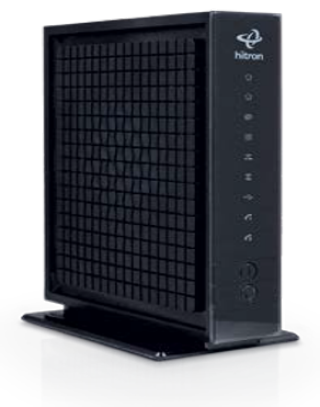

Hitron CGNV4

Before you begin, please check your Hitron box came with the following equipment:

  • 12v 2.5 Amp (30W) power adapter for UK mains
  • RJ45 Ethernet cable (1.8 metres long)

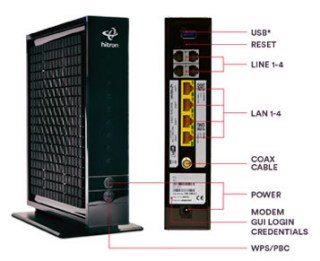

About your Hitron CGNV4 router



IT Equipment

Cable modem to connect your devices to the Internet.

Wireless

WLAN supporting dual concurrent band wireless ‘n’ at 2.4GHz and 5GHz and wireless ‘ac’ at 5GHz.Both bands use IEEE 802.11n/ac WiFi access and are backward compatible with A/B/G devices.

If you’ve chosen to take advantage of one of our multi-static IP address options (e.g. 5 or 13 static IP addresses), in addition to the VMB supplied Hitron router, you will require a customer provided router to enable WiFi capability.

Wired Devices

Gigabit LAN switch with 4 Gigabit Ethernet and 4 RJ11 phone line ports

Security

Configurable software firewall for setting filters and controls.

2 Port - Hitron CGNV4-BIZ

Hitron 2 port router

4 Port - Hitron CGNV4-FX4

Hitron 4 port router

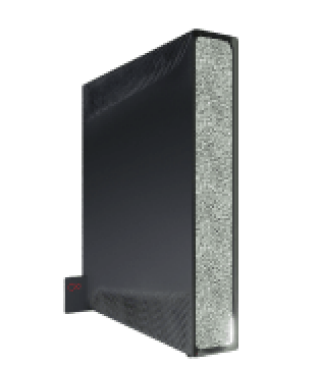

Hub 5

Before you begin, please check your Hitron box came with the following equipment:

  • 12v 3.5 Amp (42W) power adapter for UK mains
  • RJ45 Ethernet cable (1.8 metres long)

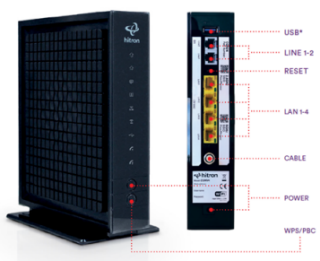

About your Hub 5 router



IT Equipment

Cable modem to connect your devices to the Internet.

Wireless

WLAN supporting dual concurrent band wireless ‘n’ at 2.4GHz and 5GHz and wireless ‘ac’ at 5GHz.Both bands use IEEE 802.11n/ac WiFi access and are backward compatible with A/B/G devices.

If you’ve chosen to take advantage of one of our multi-static IP address options (e.g. 5 or 13 static IP addresses), in addition to the VMB supplied Hitron router, you will require a customer provided router to enable WiFi capability.

Wired Devices

Gigabit LAN switch with 4 Gigabit Ethernet and 2 phone line ports

Security

Configurable software firewall for setting filters and controls.




Setting up LAN, Static IP and WAN IP

Watch the video below to find out how to configure your Hitron router.

This video will show you how to set up LAN, configure single or multiple Static IPs and how to find information on your WAN IP address.

We'll install the router for you but to ensure your router is running as it should, please check the lights. See the section below to learn more about the status lights and control buttons on your router.




Additional configuration

Select from the additional configuration settings below.
